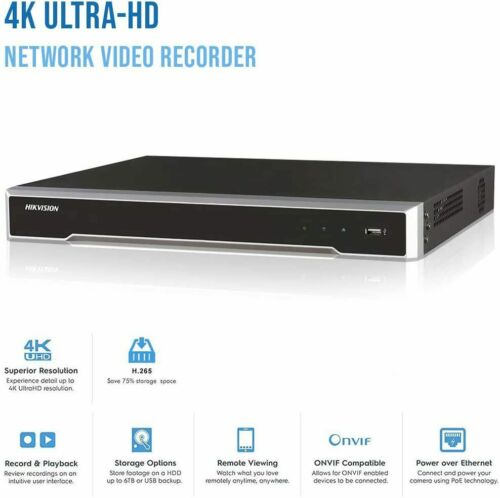

Hikvision NVR 8CH 8POE 4K H.265+ DS-7608NI-Q2/8P Network Video Recorder

8-ch 1U 8 PoE 4K NVR

1. Up to 8-ch IP camera inputs
2. H.265+/H.265/H.264+/H.264 video formats
3. Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
4. Up to 80 Mbps incoming bandwidth

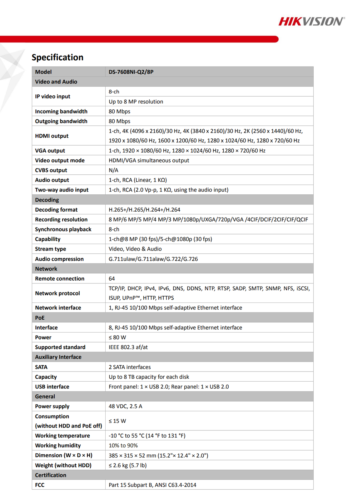

1. Video And Audio
2. IP Video Input8-ch
3. HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
4. VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
5. Video Output ModeHDMI/VGA simultaneous output
6. Incoming Bandwidth80 Mbps
7. Outgoing Bandwidth80 Mbps
8. Audio Output1-ch, RCA (Linear, 1 KΩ)
9. Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
10. Decoding
11. Decoding FormatH.265+,H.265,H.264+,H.264
12. Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
13. Synchronous Playback8-ch
14. Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
15. Network
16. Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
17. Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
18. PoE
19. Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
20. Power≤ 80W
21. StandardIEEE 802.3 af/at
22. RAID
23. RAID TypeNo
24. Auxiliary Interface
25. SATA2 SATA interfaces
26. CapacityUp to 8TB capacity for each disk
27. USB Interface2 × USB 2.0
28. General
29. Power Supply48V| ,2.5A MAX
30. Consumption≤ 15W
31. Working Temperature-10 to +55º C (+14 to +131º F)
32. Working Humidity10 to 90 %
33. Chassis1U chassis
34. Dimension (W × D × H)385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
35. ≤ 2.6 kg (5.7 lb)
