SEKURER CCTV Camra Tester,IPC-7600CADH Plus 8K 32MP IP Camera Tester with Cable Tracer 4K 8MP AHD CVI TVI CVBS Coaxial Camera Tester 7” Touch Screen Monitor Support HDMI VGA TDR Audio POE RS485 : Electronics
$799.00

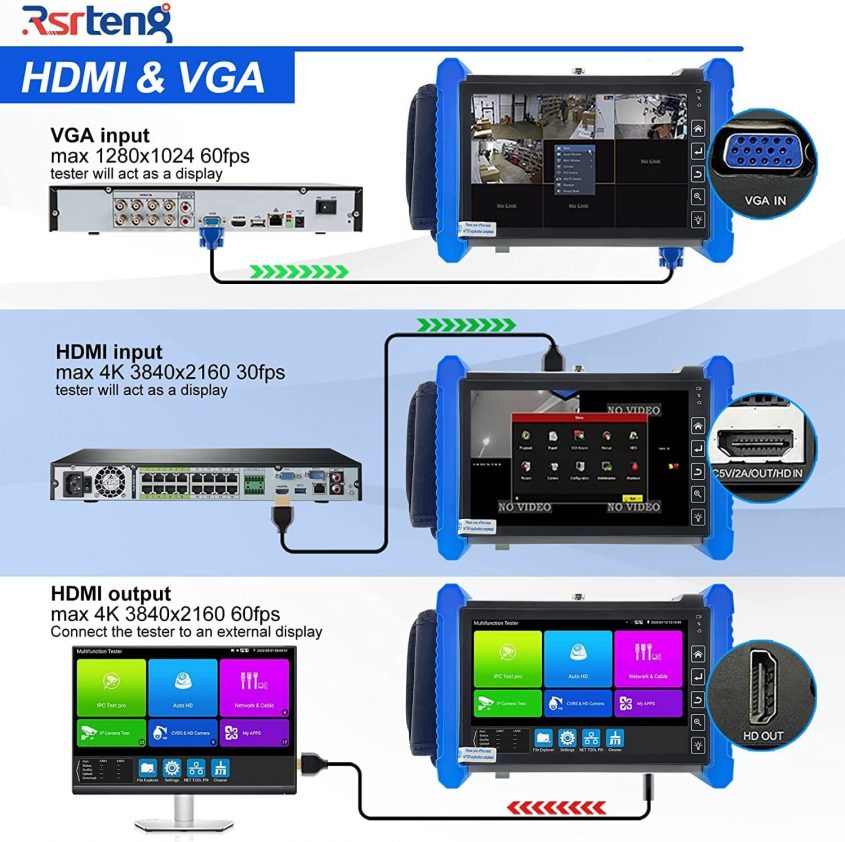

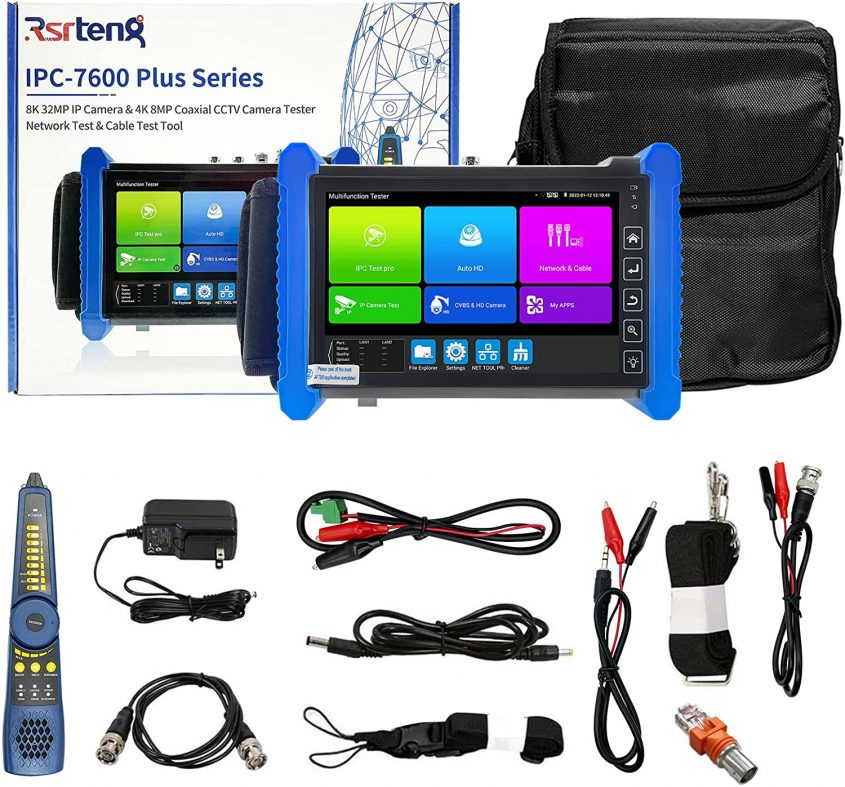

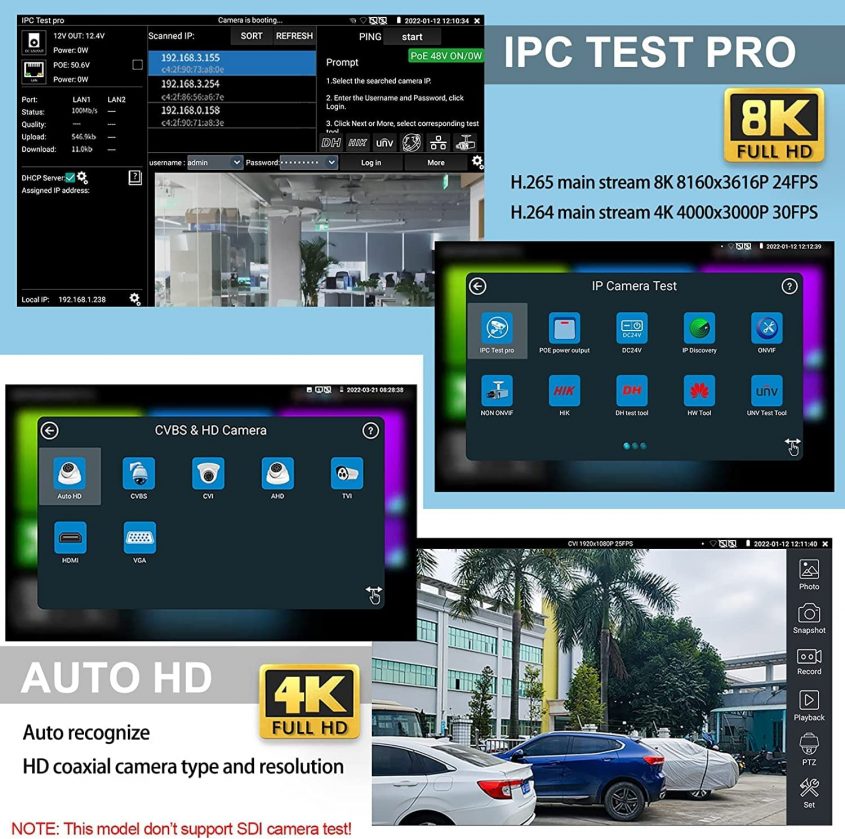

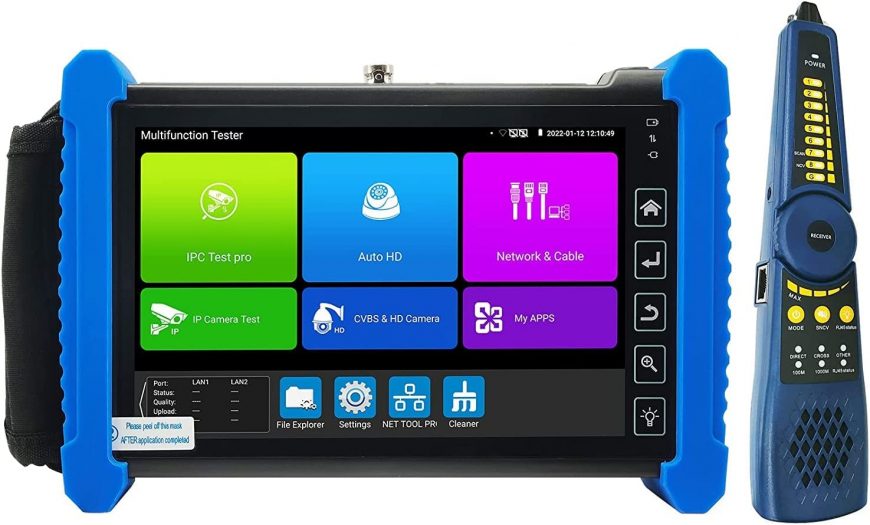

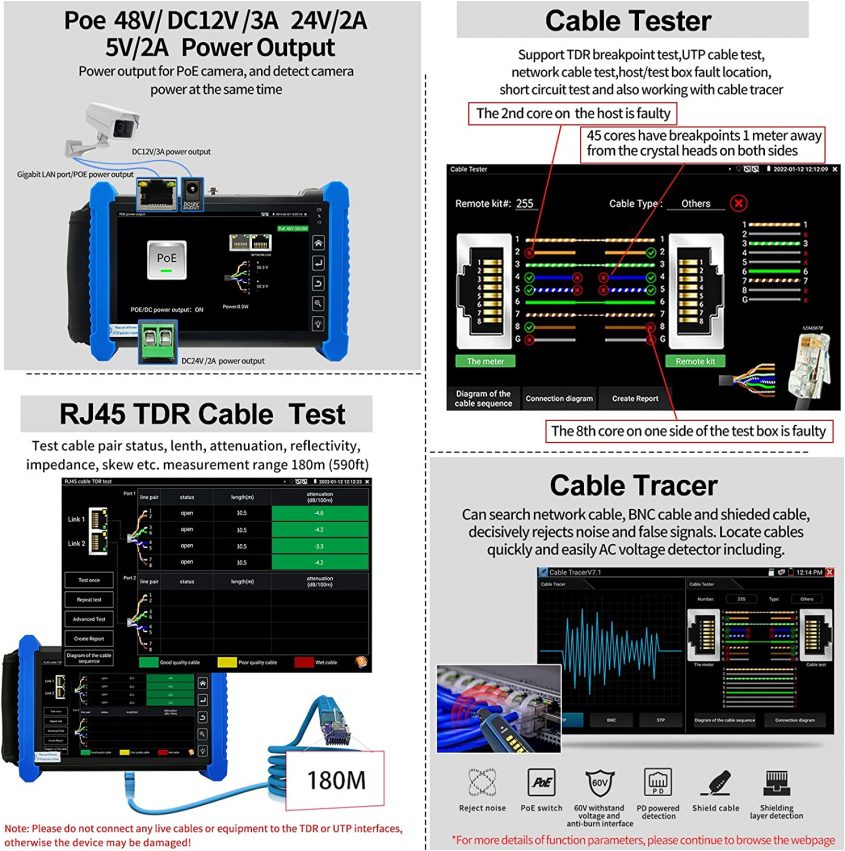

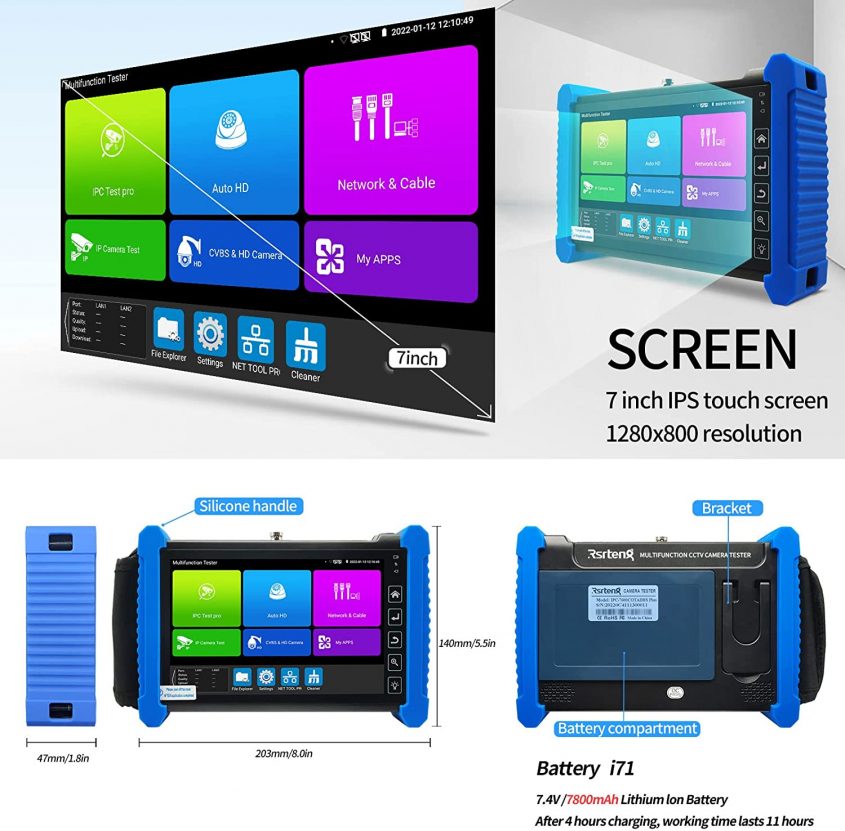

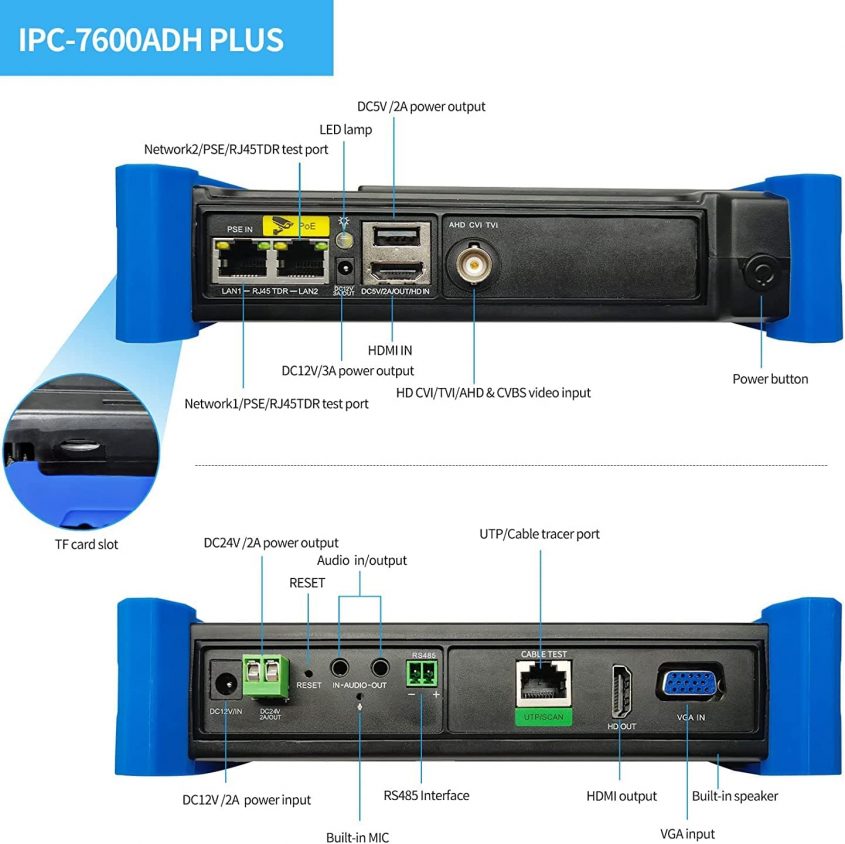

【Upgrade NEW CCTV Camera Tester】Model:IPC-7600CADH Plus.7 inch touch screen HDMI tester, 1280*800 high resolution.Use Android 9.1 OS.Support Cable tracer,HDMI tester,TDR cable test . H.265 8K,Gigabit Ethernet Ports,2.4GHz WiFi(Not 5G),POE,RS485,TF card slot.HDMI I/O,VGA input, Audio I/O.The camera tester tool will make your installation process simple and efficient. Note: Please do not connect any live cables or equipment to the TDR or UTP interfaces, otherwise the device may be damaged! 【8K IP Camera Test】HD camera tester support max H.265 8K 32MP 8160x3616p 24fps/H.264 4K 12MP 4000*3000p 30fps IP camera test.In H.265 encoding mode,the main stream test image supports a maximum resolution of 8K/24FPS.Multi-brand OVIF IPC test.Support batch activate Hik & DH cameras and modify IP address,password etc; IP Discovery/Quick OVIF/Non-OVIF IPC test /RTSP play/Client APK.Rapid OVIF, support face recognition and create test report. 【HD Coaxial Camera Test 】Built-in “Auto HD” APP can automatically recognize the camera type.Max 8MP (3840x2160P) TVI/AHD/CVI/CVBS analog camera test, NTSC/PAL(Auto adapt).Support Coaxial PTZ control & call OSD menu,analog level test,TVI 5.0 audio test.RS485 control, compatible with more than 30 protocols such as for PELCO-D/P etc. 【Powerful network tool & Cable Tracer】Support PoE IEEE802.3af/at 48V, maximum power 30W, UTP cable test, POE test TDR cable test.Built in 2.4GHz WiFi analyzer,create WIFI hotspot.Support snapshot, video record & playback;Quickly search BNC cable,network cable and telephone cable from the mess cables and NCV Voltage Detector. With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Cable tracer support AC Voltage Detector. 【Battery & Quality Assurance】Built-in 7.4V/7800mAh/57.72Wh battery.DC5V/2A,12V/3A,24V/2A,POE power output.After charging 4 hours, normal working time 11 hours.Tester Dimension/Net weight 8 x 5.5 x 1.85 inch/0.94kg(2.1lbs).Continue to browse our web page to get more detailed parameters.We tested every cctv camera tester before sent it, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty. If there are any issues, pls feel free to contact us.
| Product Dimensions | 7.98 x 5.5 x 1.85 inches |
|---|---|
| Item Weight | 2.06 pounds |
| ASIN | B0BJJQRLZF |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Customer Reviews | /* .cm-cr-review-stars-spacing-big { 5.0 5.0 out of 5 stars P.when('A', 'cf').execute(function(A) { 5.0 out of 5 stars |
| Best Sellers Rank | #84 in Security Monitors & Displays |
| Date First Available | October 18, 2022 |
| Manufacturer | Rsrteng |
1 review for SEKURER CCTV Camra Tester,IPC-7600CADH Plus 8K 32MP IP Camera Tester with Cable Tracer 4K 8MP AHD CVI TVI CVBS Coaxial Camera Tester 7” Touch Screen Monitor Support HDMI VGA TDR Audio POE RS485 : Electronics
Only logged in customers who have purchased this product may leave a review.
Jay S
Even though it has some drawbacks and bugs, it is totally worth it the investment. I am very happy with my tester, specially when it comes to initialize my cameras. It lacks a detailed documentation and/or full video tutorial explaining how to take the maximum advantage of the device.** PROS:- Ability to use it as a monitor. I no longer need to carry my 17″ monitor with me to work on my NVRs; Helps me a lot creating video tutorials for NVRs and DVRs;- Initialize and factory reset my cameras right from my tester.- POE feature saves me a lot of time connecting my camera directly to the tester instead of using POE switches to test and initialize them.- Even though it is not a fluke, I am using it to generate test reports with screenshots for UTP cables** CONS:- No access to Google Play;- Poor documentation;So I am really satisfied with my tester and would highly recommend it if you work as camera installer.
