IDF/MDF Rack Build and Data Center Hygiene

IDF/MDF rack build and hygiene: agreed elevation, cable management, labels reconciled to the port schedule and photo acceptance.

Project context

Setting: Office IDF/MDF or small server room
Scale: Single rack to small row

Challenge

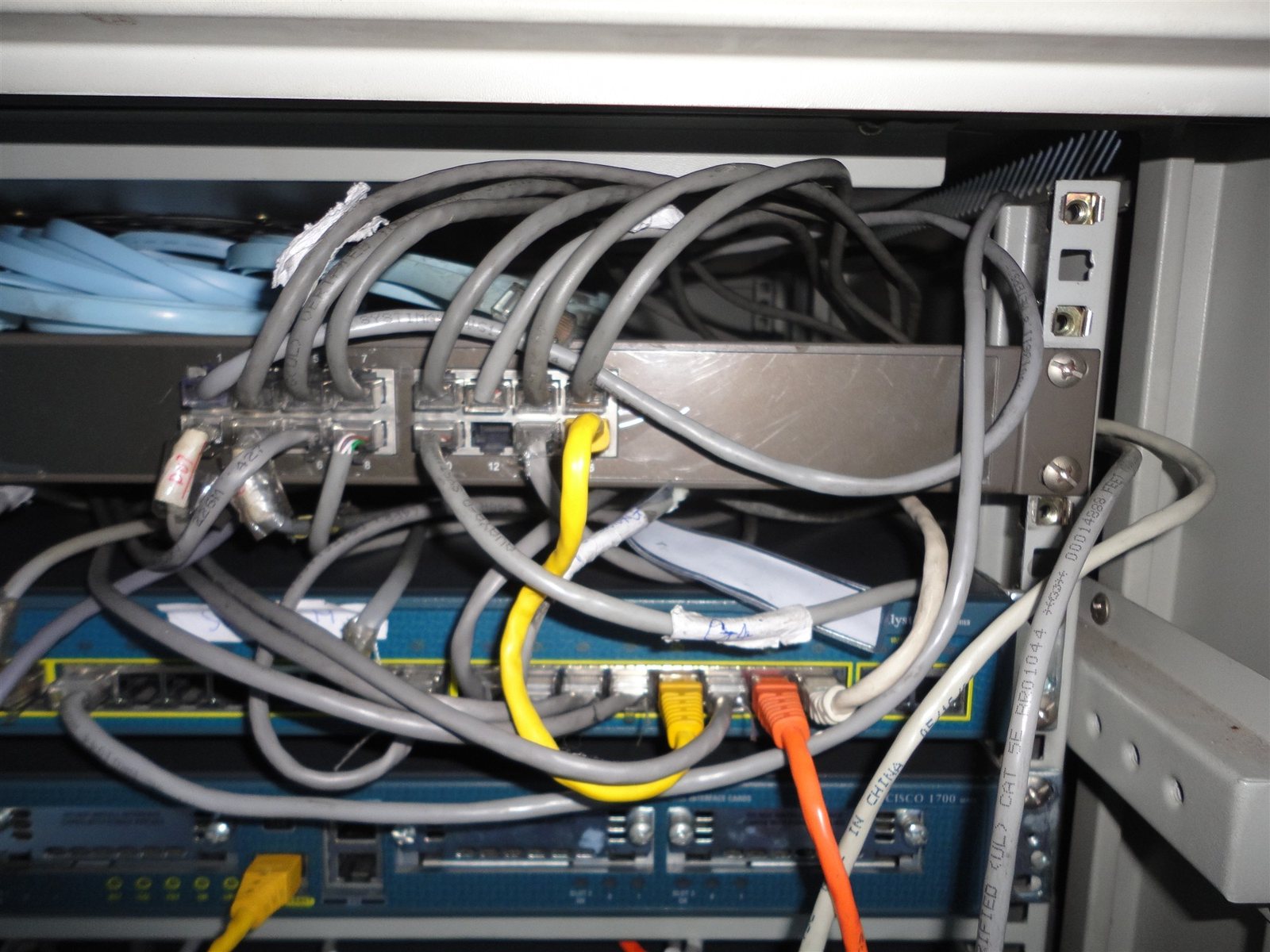

Many incidents trace to messy racks: unlabeled patching, blocked airflow, unknown PDU load. This case captures rack build & hygiene: elevation standards, cable managers, labeling, and photo acceptance.

Environment

Existing cluttered cabinet or new rack
Mixed copper/fiber
Limited maintenance window
Photo evidence required for HQ

Solution architecture

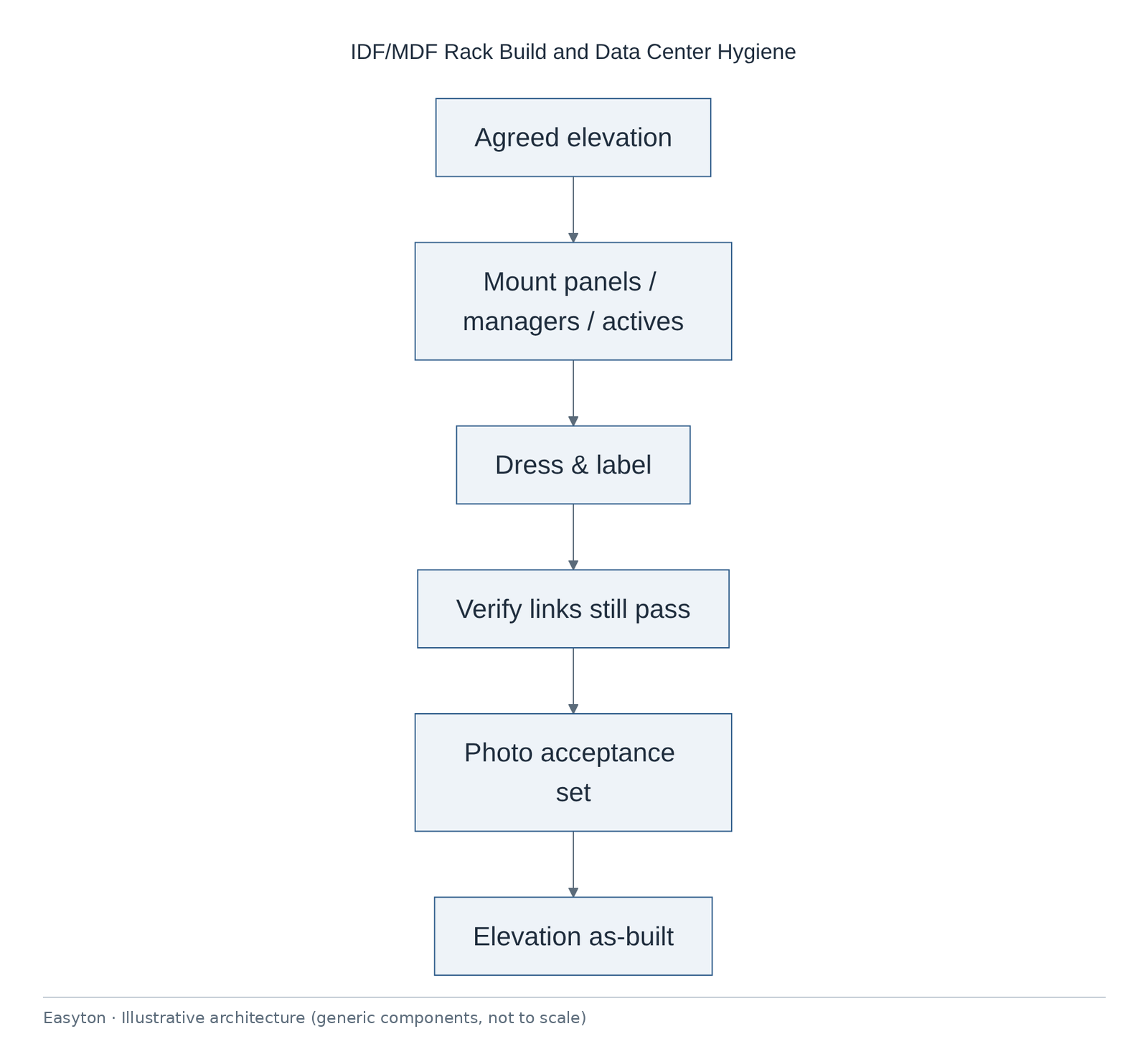

Illustrative architecture diagram: IDF/MDF Rack Build and Data Center Hygiene — Illustrative architecture diagram (generic component names).

Text view of the architecture (each line: component → what it connects to):

Agreed elevation → Mount panels / managers / actives
Mount panels / managers / actives → Dress & label
Dress & label → Verify links still pass
Verify links still pass → Photo acceptance set
Photo acceptance set → Elevation as-built

Technical highlights

Elevation discipline

Panels and managers adjacent; actives with airflow clearance.
Vertical PDU preferred when density high.
Growth U reserved and labeled “RESERVED.”

Cable management

Bundle sizes kept manageable; bend radius respected.
Color conventions optional (e.g. yellow patch for data)—document if used.

Labeling

Panel port ↔ outlet schedule reconciliation.
Replace cryptic labels that only one contractor understood.

Hygiene checklist

Vacuum dust · replace missing screws · remove abandoned leads · confirm grounding bonding visually

Rear of copper patch panels with bundled, tied and dressed horizontal cables — Illustrative example of Easyton rack and cabling workmanship (not from this specific project).

Front of a network rack with labeled copper patch panels, yellow patch leads and horizontal cable managers — Illustrative example of Easyton rack and cabling workmanship (not from this specific project).

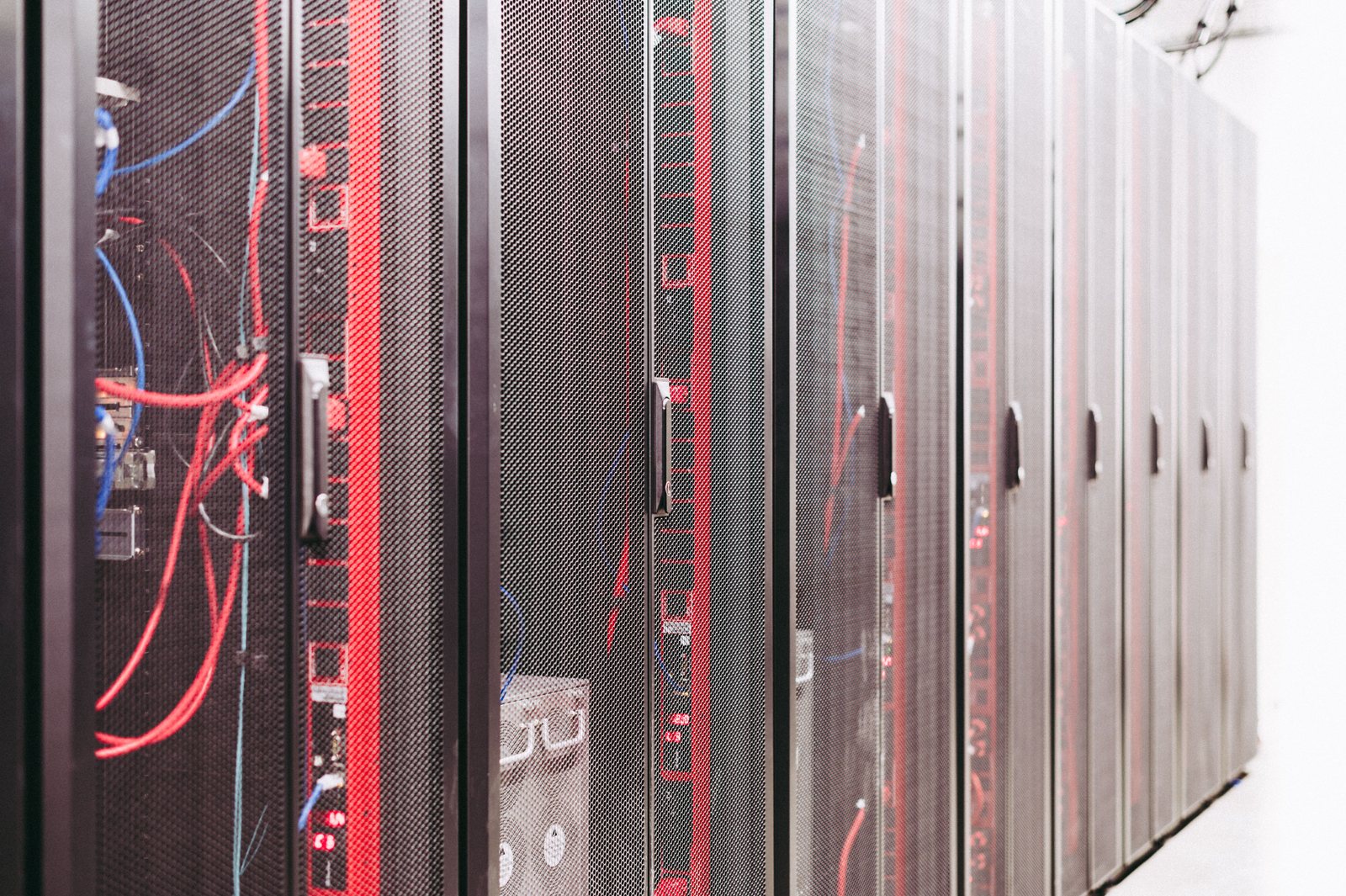

Row of server racks with color-coded patch cabling — Illustrative image.

Implementation steps

Photo baseline
Elevation approve
Demarc old patches
Rebuild
Relabel
Spot test
Photo set
As-built

Acceptance

Elevation matches install
Sample links pass
Labels readable
Photo set archived
Abandoned cabling removed or tagged

Deliverables

Elevation drawing
Photo acceptance set
Updated port schedule
Hygiene checklist

Outcome

IDF/MDF rack brought to documented elevation and labeling standard with photo evidence.
