Project context
- Setting: Greater Bay Area Grade-A office
- Scale: Multi-department Grade-A office with meeting, open office, and secured zones
Challenge
A Grade-A office fit-out required coordinated weak-current systems: data outlets, Wi‑Fi APs, facial/door access points, CCTV points, and video-conference points, plus network topology and a weak-current requirements table. Multiple vendors (fit-out, AV, security, IT) needed one integrated point plan so ceilings were not opened repeatedly.
Environment
- High-spec office floor(s) with raised or finished ceilings
- Departments with different sensitivity (finance vs open office vs guest)
- HQ may sit on-site or overseas with VPN backhaul
- Dual-ISP edge and redundant core often desired (a design pattern, not a measured SLA)
Solution architecture
Integrated point layers
- Data work-area outlets
- AP overlay
- Access control readers/locks (facial or card as selected)
- CCTV coverage of entries/corridors
- Video conference room network & display adjacency
- Floor IDF patching to campus/core

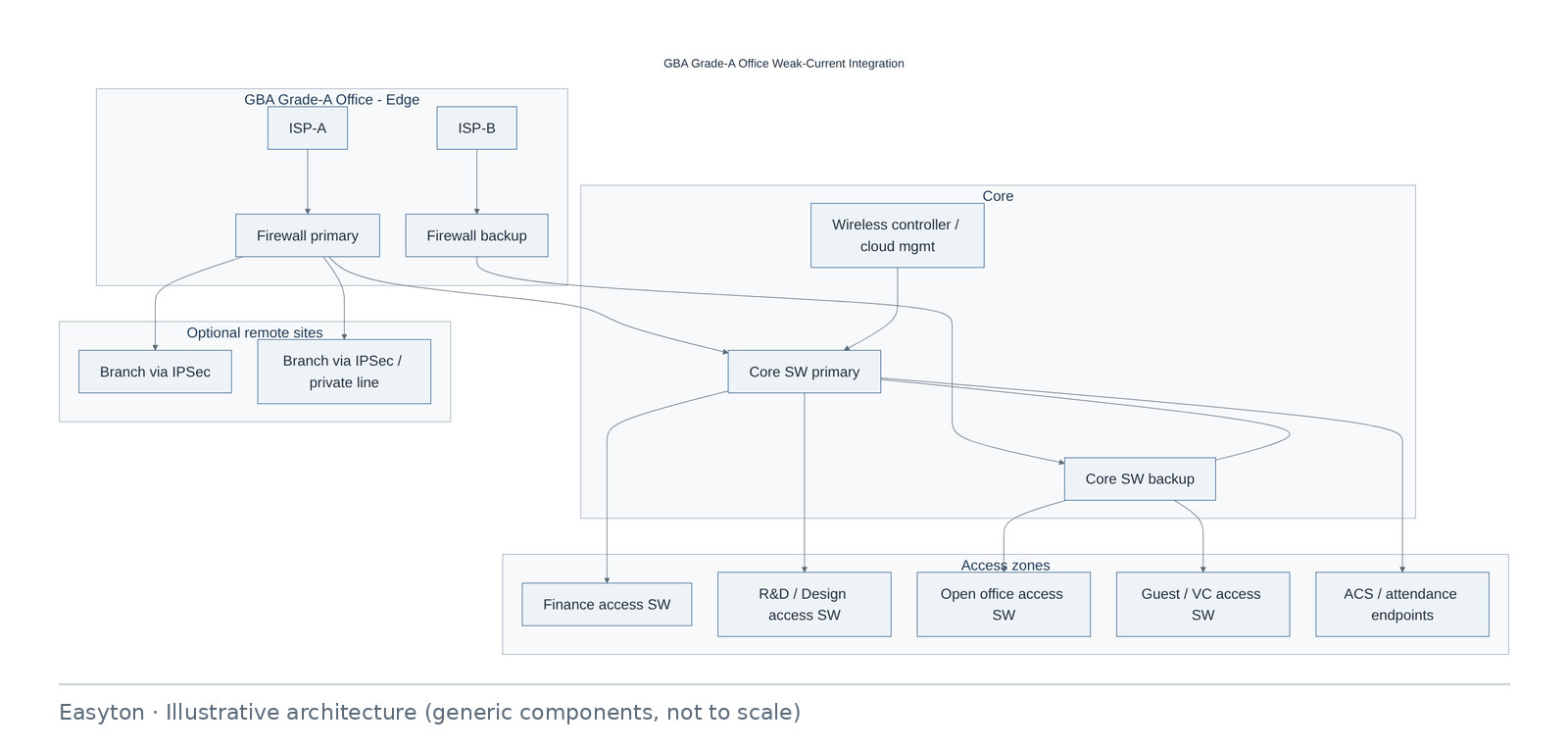

Network topology (illustrative)
Text view of the architecture (each line: component → what it connects to):
ISP-A → Firewall primary ISP-B → Firewall backup Firewall primary → Core SW primary, Branch via IPSec, Branch via IPSec / private line Firewall backup → Core SW backup Core SW primary ↔ Core SW backup Wireless controller / cloud mgmt → Core SW primary Core SW primary → Finance access SW, R&D / Design access SW, ACS / attendance endpoints Core SW backup → Open office access SW, Guest / VC access SW
Technical highlights
Network & redundancy pattern
- Dual ISP → HA firewall pair → dual core switches (as scoped/purchased).
- Failover behaviour described qualitatively; no unmeasured failover-time claims.
- Departmental access switches imply VLAN zoning candidates: finance · R&D · open office · guest · VC · ACS.
Wi‑Fi
- Central AC or cloud controller; APs on PoE access switches.
- Guest SSID isolation from corp resources.
- AP point layouts prepared from the site survey.
Access control
- Readers at main entries / sensitive rooms; controllers on ACS VLAN.
- Facial vs card is a product choice in the BOM.
- Door schedules and anti-passback only if configured.
CCTV
- Entry/corridor coverage coordinated with access events where platforms allow (integration optional).
- Recording retention sized with a worksheet method rather than a fixed day count.
Video conference
- Dedicated drops and sometimes QoS markings recommended; VC VLAN optional.
- AV codec ownership often separate—document network prerequisites only.

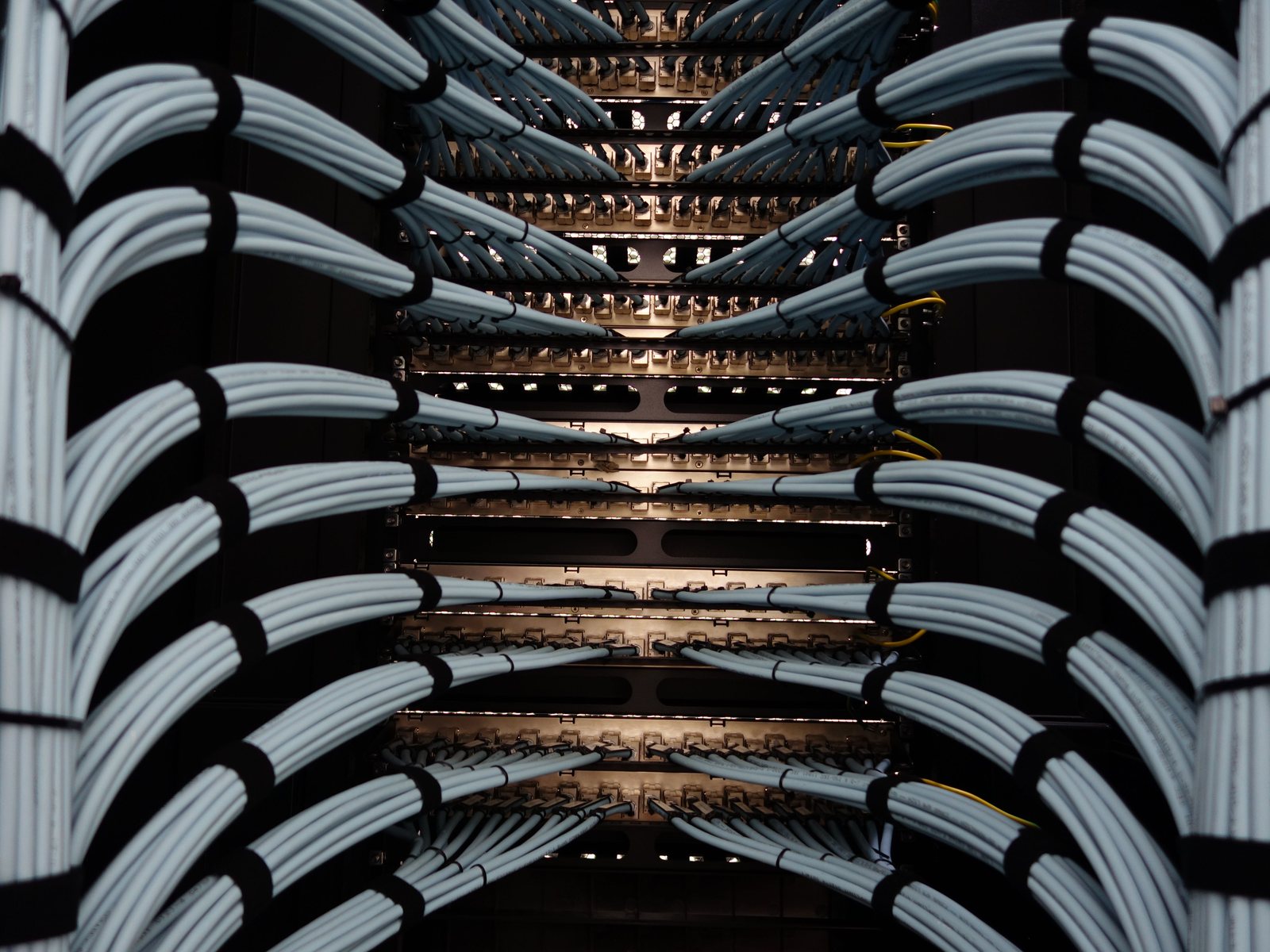

Cabling plant
- Category and labeling unified across data/AP/ACS/CCTV drops where possible.
- IDF elevation reserves U for ACS controllers and PoE growth.
Implementation steps
- Requirements table workshop (systems in/out).
- Combined point plans (AP / ACS / CCTV / VC / data).
- Topology approval with HQ IT.
- Passive install + labeling.
- Switch/WLAN/ACS/CCTV bring-up in waves.
- Department cutover.
- Integrated acceptance (see below).
- As-built + ops handoff.
Acceptance
| System | Sample criteria |
|---|---|
| Data | Outlets pass tests; port schedule complete |
| Wi‑Fi | APs online; SSID maps verified in sample areas |
| Access | Doors unlock/lock per schedule; events logged |
| CCTV | Cameras online; sample playback |
| VC | Room endpoints reach network resources as designed |
| Docs | Requirements table + as-builts delivered |
Deliverables
- Weak-current requirements table
- Combined point plans
- Network topology
- Port/AP/ACS/CCTV schedules
- Test records
- As-built pack
- Training notes
Outcome
GBA Grade-A office weak-current systems integrated under one point plan and topology package suitable for HQ and local IT.
