Multi-floor industrial CCTV with per-floor PoE switch distribution, NVR recording, VLAN separation and an operations manual.
Project context
- Setting: Mainland multi-floor industrial facility
- Scale: Multi-floor industrial / light-manufacturing plant
Challenge
A multi-floor industrial site needed IP CCTV coverage with clear floor distribution, PoE switching, recording, and an operations manual pack so shift supervisors could retrieve video without calling a vendor for every incident. Challenges included long horizontal runs, dusty/EMI-prone areas, and limited rack space for NVR and PoE stacks.
Environment
- Several floors of production / warehouse / office mix
- Existing or new data pathways; some cameras outdoor or high-bay
- Central rack room or secured cabinet for NVR
- Operators need bilingual or at least illustrated SOPs
- Maintenance windows around production shifts
Solution architecture

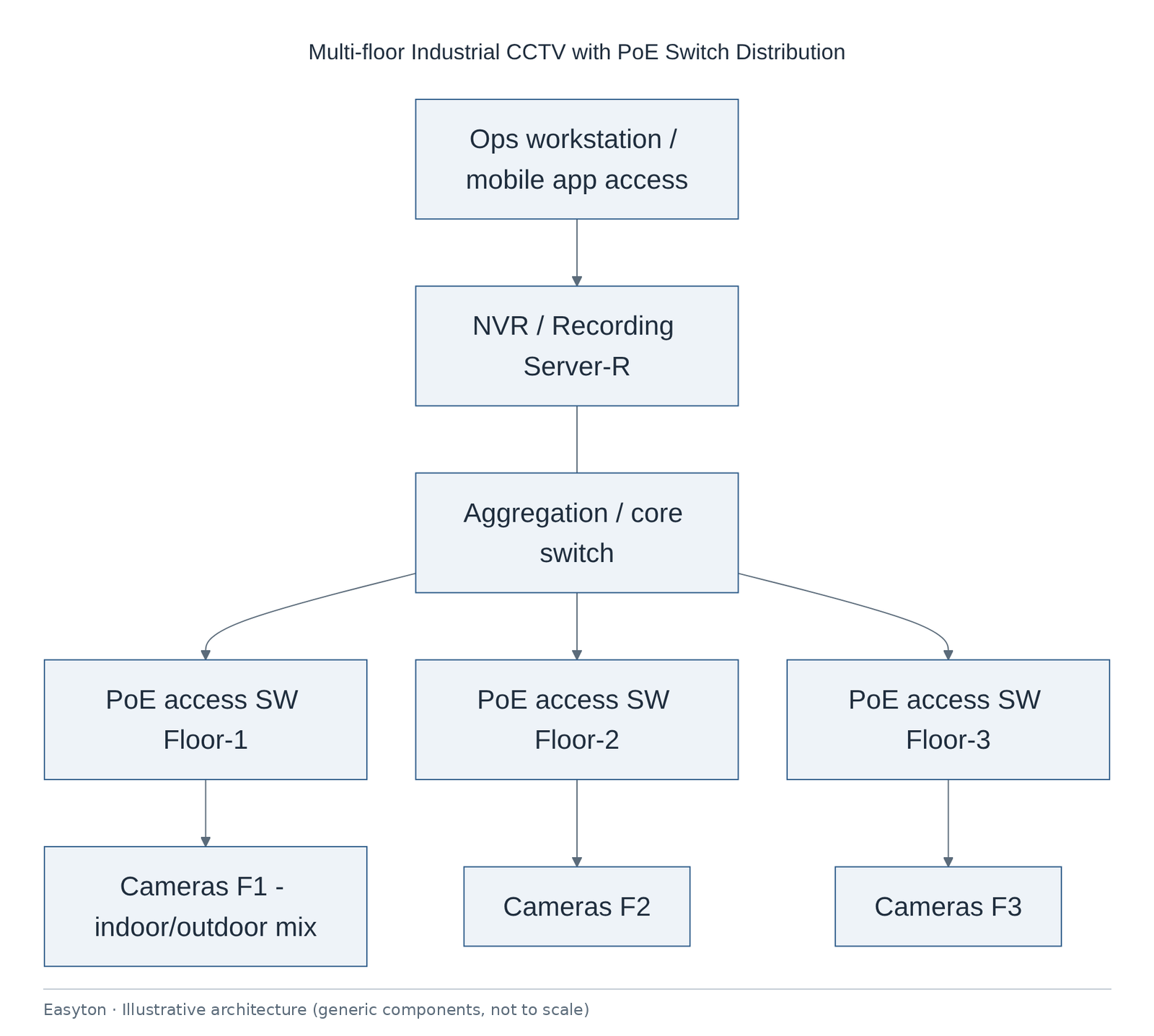

Text view of the architecture (each line: component → what it connects to):
NVR / Recording Server-R ↔ Aggregation / core switch Aggregation / core switch → PoE access SW Floor-1, PoE access SW Floor-2, PoE access SW Floor-3 PoE access SW Floor-1 → Cameras F1 - indoor/outdoor mix PoE access SW Floor-2 → Cameras F2 PoE access SW Floor-3 → Cameras F3 Ops workstation / mobile app access → NVR / Recording Server-R
PoE distribution principle: place PoE access switches near camera density per floor to stay within Ethernet distance and PoE power budget; uplink cameras’ switches to aggregation; keep CCTV on dedicated VLAN recommendations.
Technical highlights
Camera and imaging (brand-neutral selection dimensions)
- Indoor vs outdoor housings; IR/night capability; fixed vs varifocal as per survey.
- Resolution class chosen for identification vs overview goals (documented qualitatively).

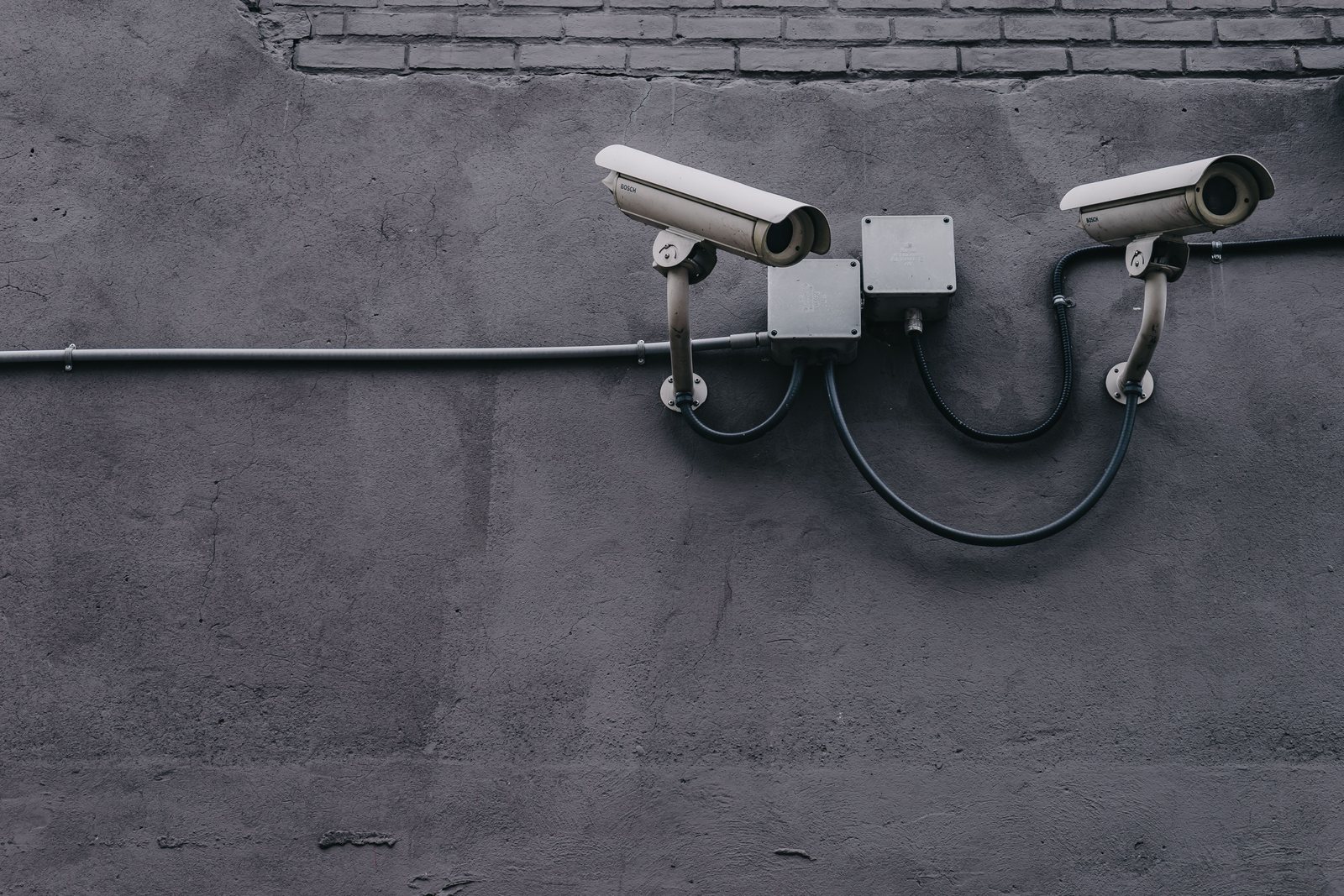

- Mounting: wall / pole / high-bay with vibration notes for industrial floors.
PoE and switching
- Per-floor PoE switch power budget planned against camera draw + spare.
- Prefer 802.3af/at class devices as specified in BOM; avoid undersized injectors for multi-camera bunches.
- Uplinks sized for aggregated burst when many cameras record high-motion scenes.
- CCTV VLAN recommendation isolates camera discovery traffic from office PCs.
Recording and retention
- NVR/server disk layout described as RAID level as purchased; retention is a function of bitrate × cameras × days; the sizing method is documented rather than a fixed day count.
- Time sync (NTP) called out so incident timelines match access logs.
Operations manual pack characteristics
- Chapters typically: live view · playback · export · user roles · camera online check · escalation.
- Role accounts—not shared “admin/admin”—recommended; passwords are never included in handover documents.
Resilience
- UPS for NVR/PoE stack if facilities provide; otherwise note risk of recording gaps on power loss.
Security
- Change default credentials; management interfaces not exposed to guest Wi‑Fi.
- Physical cabinet lock for NVR.
Implementation steps
- Site survey with floor sketches and light readings for problem corners.
- Point plan + PoE switch placement drawing.
- BOM (cameras, mounts, PoE SW, NVR, HDD, patch, labels).
- Pathway / cabling for camera drops (or reuse).
- Rack NVR + PoE stack; address plan.
- Camera hang, aim, focus; name cameras by floor-zone codes.
- Recording schedule & motion zones as agreed.
- Operator training + manual handover.
- Acceptance sample playback & export drill.
Acceptance
| ID | Criterion | Evidence |
|---|---|---|
| V1 | All scoped cameras online and named | NVR device list |
| V2 | PoE budget headroom documented | Spreadsheet |
| V3 | Sample playback from each floor | Witnessed export |
| V4 | Manual pack received by ops | Sign-off |
| V5 | Default passwords changed | Checklist |
Deliverables
- Floor distribution sketch
- PoE distribution diagram
- CCTV network topology
- Camera schedule
- NVR config summary (no passwords)
- Operations manual pack
- Acceptance checklist
Outcome
Multi-floor industrial CCTV deployed with per-floor PoE distribution and an operations manual enabling shift playback/export.
