Industrial Park Building Information Systems Integration
Industrial Park Building Information Systems Integration
Industrial park building IS integration: riser and floor IDF hierarchy, an integration boundary matrix and floor-by-floor phased acceptance.
Project context
- Setting: Mainland industrial park / multi-building park
- Scale: Single park building or multi-floor industrial–office mix
Challenge
A park building required information systems installation across vertical pathways, floor distributors, and selective system hooks. Procurement needed an installation quotation structure shareable by facilities, GC, and IT. Multi-tenant or multi-floor phasing meant partial acceptance, not a single “big bang.”
Environment
- Riser shafts and weak-current rooms with GC firestop rules
- Possible multi-tenant suites with demarc at floor or building MDF
- Industrial noise/EMI on some floors
- Staged floor release calendar
Solution architecture

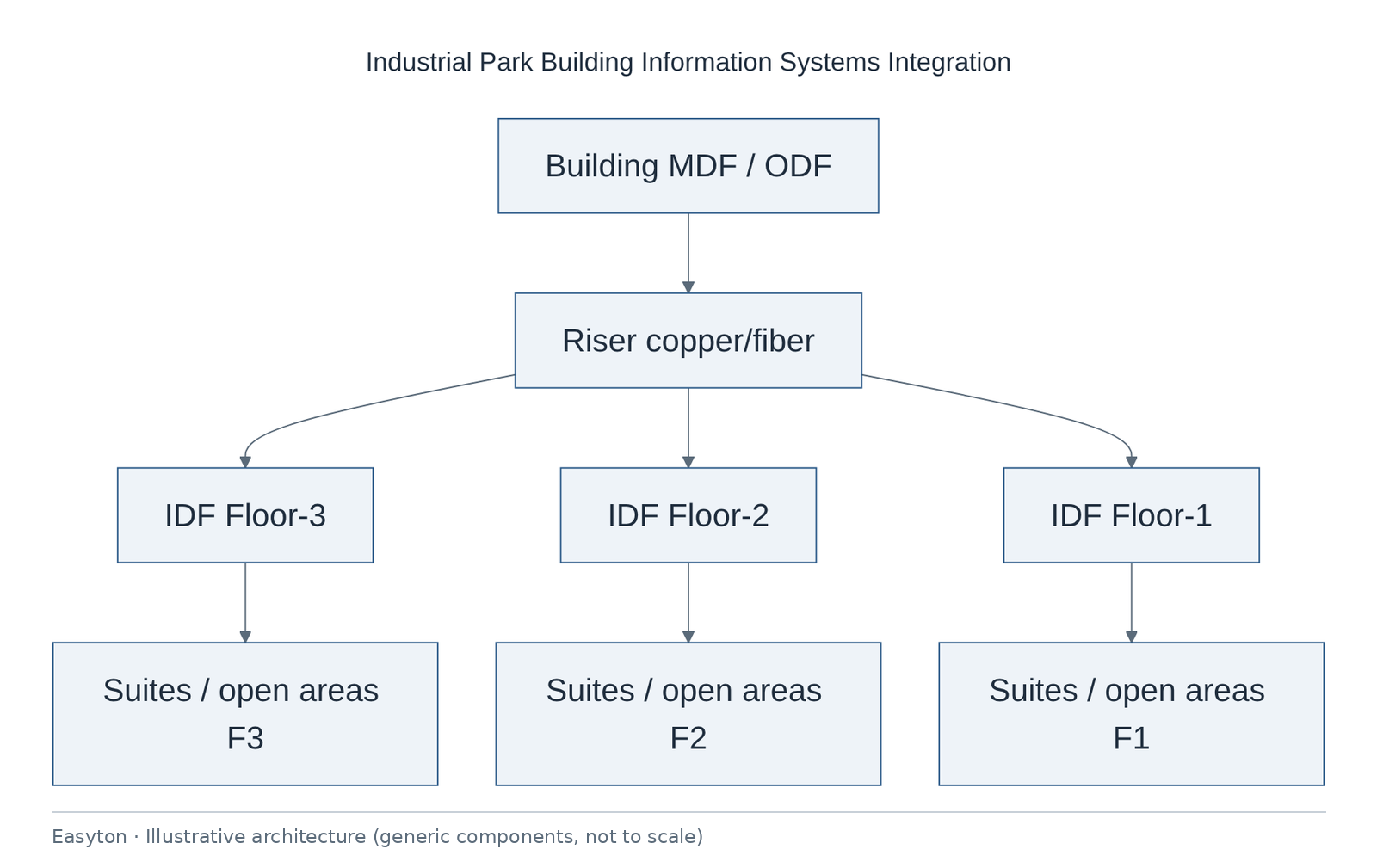

Text view of the architecture (each line: component → what it connects to):
Building MDF / ODF → Riser copper/fiber Riser copper/fiber → IDF Floor-3, IDF Floor-2, IDF Floor-1 IDF Floor-3 → Suites / open areas F3 IDF Floor-2 → Suites / open areas F2 IDF Floor-1 → Suites / open areas F1
Technical highlights
Riser and hierarchy
- Vertical copper/fiber counts planned with spare capacity notes (assumption, not SLA).
- Building MDF aggregation role clear vs tenant suite switches.
- Labeling crosses floors:
Building-Floor-Panel-Port.
Integration boundary matrix
- Explicit matrix: Easyton installs vs tenant brings (Wi‑Fi, CCTV heads, PBX, etc.).
- Prevents “who owns the patch panel” disputes after move-in.
Phasing and acceptance
- Floor-by-floor acceptance certificates; building summary at end.
- Partial energization rules documented.
Pathway / firestop
- Coordination with GC; Easyton performs firestop only if scoped and qualified.
Industrial considerations
- Prefer metallic pathways and documented shared-tray exceptions near heavy machinery floors.
Implementation steps
- Survey risers
- Integration plan
- Quotation structure
- Floor installs
- Test/label per floor
- Phased acceptance
- Building handover pack
Acceptance
- Per-floor links pass
- Labels match schedule
- Boundary matrix signed
- Phased certificates filed
- Building summary delivered
Deliverables
- Integration plan
- Riser/floor diagrams
- Quote structure
- Test/label packs
- Phased acceptance records
Outcome
Building IS installation delivered to agreed floors with aggregation handoff docs.
